Top Bar¶

Top Bar gives a quick access to common actions. It is split into 2 parts:

Icon	Description
	Save (diskette icon) to save your current file.
	Undo Redo (left-pointing arrow icon and right-pointing arrow icon). These arrows will undo / redo your actions. Shorcuts are `Ctrl+Z` and `Ctrl+Shit+Z` on Windows. Replace `Ctrl` by `Cmd` on Mac.
	Trash Bin clears everything in the current layer of your frame (but it keeps the layer in the Layer Stack).

Actions which depend on the context of use. For instance, Raster layers and Vector layers will provide different features.

Raster Context¶

Note

For more details about all settings and tools available with Raster Layers, please read the lesson about Raster Tools’ Options and Brush Selector.

When using the Penbrush with a Raster Layer, you will see 4 Modifiers and an Eraser Mode:

Size: gives a diameter to the stroke in pixels. The node to use to connect the size to an Odyssey Brush is “Get Size Modifier”.

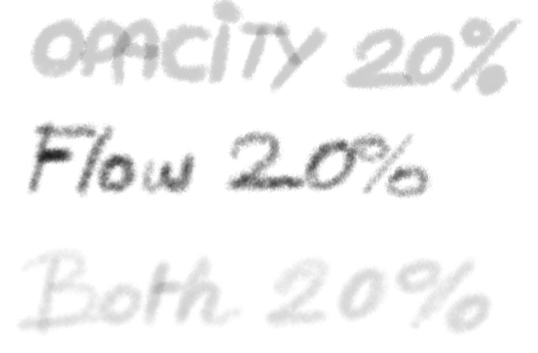

Opactity: gives a max value to the opacity of one stroke. Opacity will be multiplied at each new stroke. The node to use to connect the opacity to an Odyssey Brush is “Get Opacity Modifier”.
Flow: gives a max value to the flow of the stamps that makes the Odyssey Brush. The node to use to connect the flow to an Odyssey Brush is “Get Flow Modifier”.

Blending Mode: changes the Blending Mode of the brush.
Eraser Mode: to turn your Odyssey Brush into an eraser by changing its Blending and Alpha modes. Its shortcut is E.

Note

For more details about all settings and tools available with Vector Layers, please read the lesson about Vector Tools’ Options.

Radius: to change the thickness of the Path Drawing Tool.
Opacity: to change the opacity of the Path Drawing Tool, using float values between 0 and 1 (0=0% ; 0,5=50% ; 1=100%).

Use these icons to switch between groups of objects and vertices.

Icon	Description
	Select or edit a group of objects
	Select or edit vertices
