Vector Tools

Here are the Tools available when working on Vector Layers:

Tool

Description
../../_images/02_pathdrawing_icon.png

Path Drawing Tool to draw vector path on the canvas.
../../_images/04_PathEditor_icon.png

Path Edit Tool to edit a path or a shape.
../../_images/06_knife_icon.png

Knife to create new vertices on a path or a shape.
../../_images/07_PrimitiveShape_icon.png

Primitive Shapes like circle or rectangle.
../../_images/08_Selection_icon.png

Selection Tool to select vertices, paths or groups.
../../_images/09_Transform_icon.png

Transform Tool to move, rotate and rescale objects and selections.
../../_images/10_PanZoom_icon.png

Hand Tool to pan and zoom in / out your Scene.
../../_images/11_Push_icon.png

Push Tool pushes vertices and move them.
../../_images/13_PathSmoothTool_icon.png

Path Smooth Tool to make your path smoother or sharper.
../../_images/14_StitchTool_icon.png

Stitch Tool to stitch two paths together.
../../_images/15_Floodfill_icon.png

Paint Bucket to fill within a vector shape.
../../_images/16_Eraser_icon.png

Path Eraser to erase a part of the path.
../../_images/17_Eyedropper_icon.png

Eyedropper to pick up a color from the canvas.
../../_images/18_Grid_icon.png

Grid warp.

Path Drawing Tool

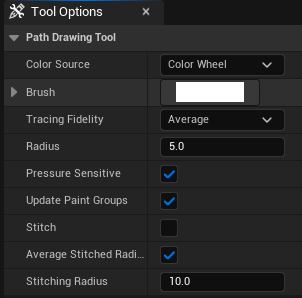

../../_images/03_odysseypathdrawingtools_options.png

The Path Drawing Tool will be used to draw in vector. Every path added automatically belong to a native Scene as a Paint Group. All these Paths can be seen in the panel Vector Scene Tree View.

Using the Path Drawing Tool will display the following options in the Tool Options:

  • Color Source: choose between the Color Modifiers or the Palette.

  • Brush: choose a style to your brush to be applied on the path.

../../_images/vector-pathdrawing-brush.png

Select “None” if you prefer the classic penbrush style.

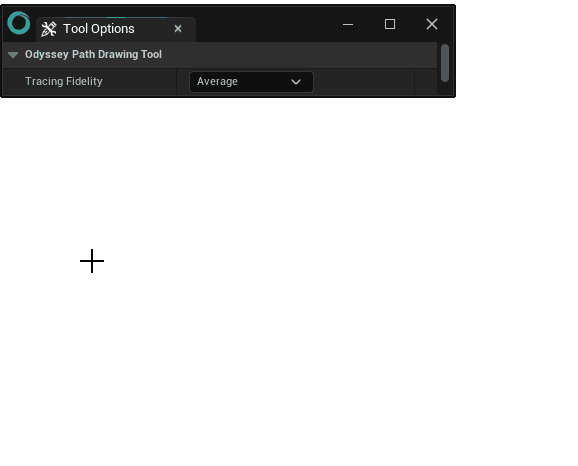

  • Tracing Fidelity: Choose the fidelity of the path when drawing with a stylus. There are 5 modes: “Lowest”, “Low”, “Average”, “High” and “Highest”. Obviously, “Lowest” requires less calculations, creates less vertices and provides a lowest fidelity than Highest, which requires more calculations for a better fidelity due to a higher quantity of vertices.

../../_images/vector-pathdrawing-fidelity.gif

  • Radius: To change the radius size of the path (can also be found in the Top Bar).

  • Pressure Sensitive: Enable or not the pressure from your graphic tablet.

  • Update Paint Groups: Creates and updates Paint Groups, in order to easily use the Paint Bucket Tool.

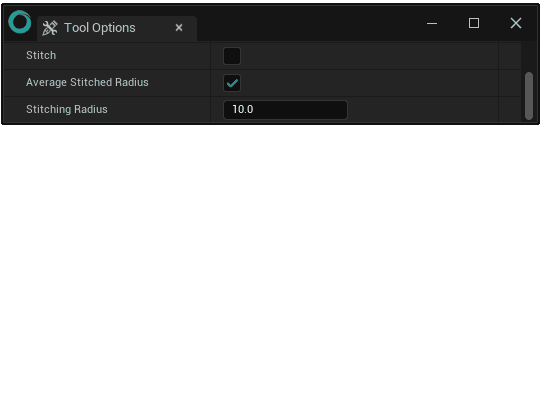

  • Stitch: Connects new paths to existing paths.

  • Average Stitched Radius: Average pressure value between the two paths to be stitched.

  • Stiching Radius: To increase or decrease the radius of the circle of influence to allow two paths to be stitched together.

../../_images/vector-pathdrawing-stitch.gif

Path Edit Tool

../../_images/05_PathEditor_options.png

This tool allows you to modify path vertices, move, widen or delete them.

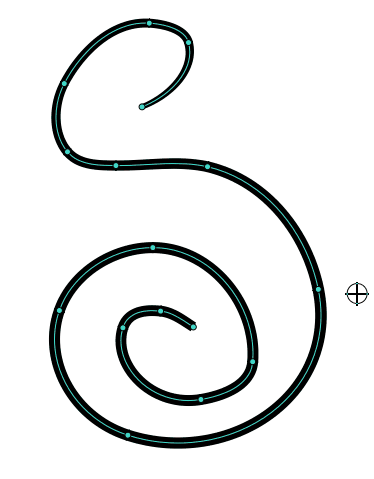

  • Move a vertex: This is the default behaviour. Select the path to be edited, then move the vertex represented with a green dot.

../../_images/vector-pathedit-move.gif

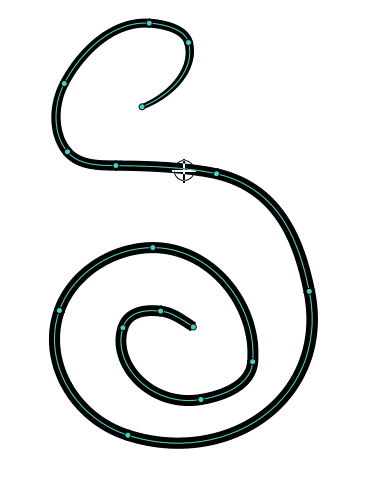

  • Edit Bezier curves: Hold Ctrl to display the handles and change the vertex curve. Click on the vertex to activate (green handles) or inactivate (white handles) the alignment of the handles.

../../_images/vector-pathedit-bezier.gif

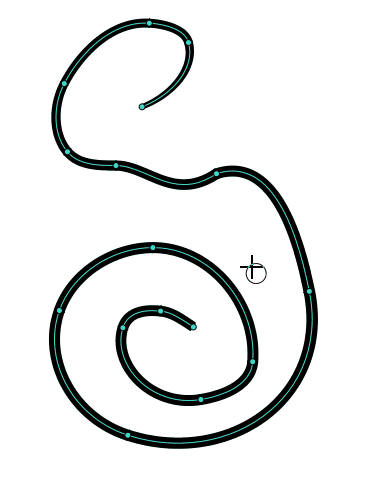

  • Delete a vertex: Hold Alt and select the vertex to delete.

../../_images/vector-pathedit-delete.gif

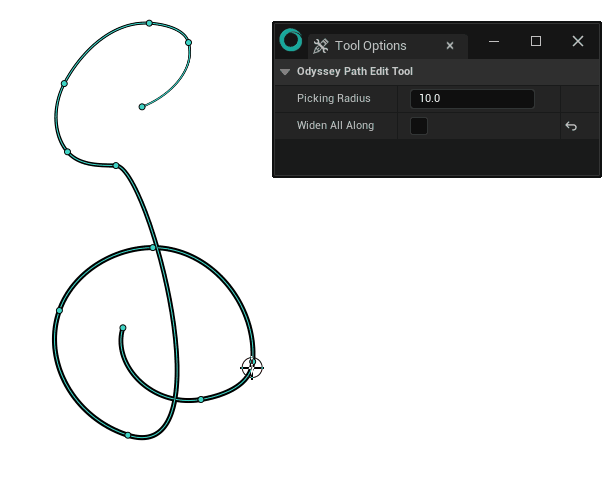

  • Widen: Hold Shift to widen the Path. This option will also depend from the option “Widen All Along”. When enabled, this tool will widen the entire path. When disabled, this tool widens one vertex and the neighboring segments.

../../_images/vector-pathedit-widen.gif

Knife

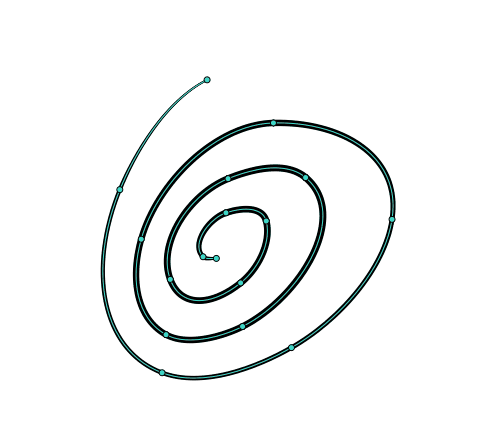

Creates new vertices by “cutting” a selected path or group at the desired place.

../../_images/vector-cut.gif

If you need to cut another path or group, use the Select Tool.

Primitive Shapes

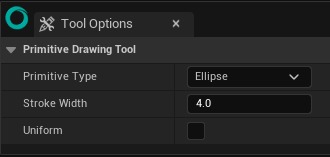

../../_images/vector-primitive.png

  • Primitive Type: Choose between ellipses, rectangles and lines.

  • Color Source: choose between the Color Modifiers or the Palette.

  • Brush: choose a style to your brush to be applied on the path.

../../_images/vector-pathdrawing-brush.png

Select “None” if you prefer the classic penbrush style.

  • Stroke Width: Choose the size of the stroke.

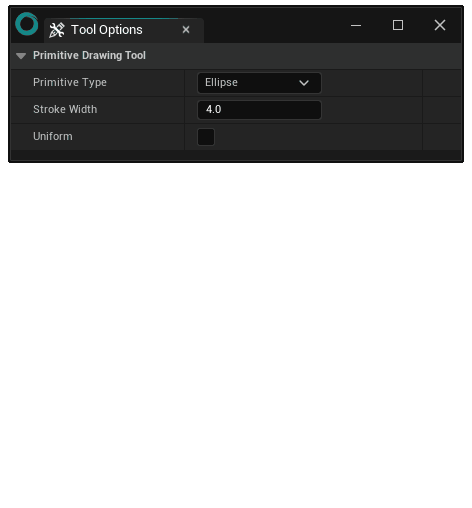

  • Uniform: Creates a primitive shape with a uniform proportion (ellipses become circles; rectangles become squares; lines will take the direction of the cardinal points). You can also hold Shift to activate the uniform mode.

../../_images/vector-primitive-shift.gif

Selection

Option

../../_images/vector-selection-shape.png

The Selection Tool will offer only one option in the Tool Options panel: the Selection Shape, where you can choose the Select Mode between Circle, Rectangle and Freehand (Lasso).

Object or Vertex

However, the Top Bar will give you the possibility to either work on objects or on vertices.

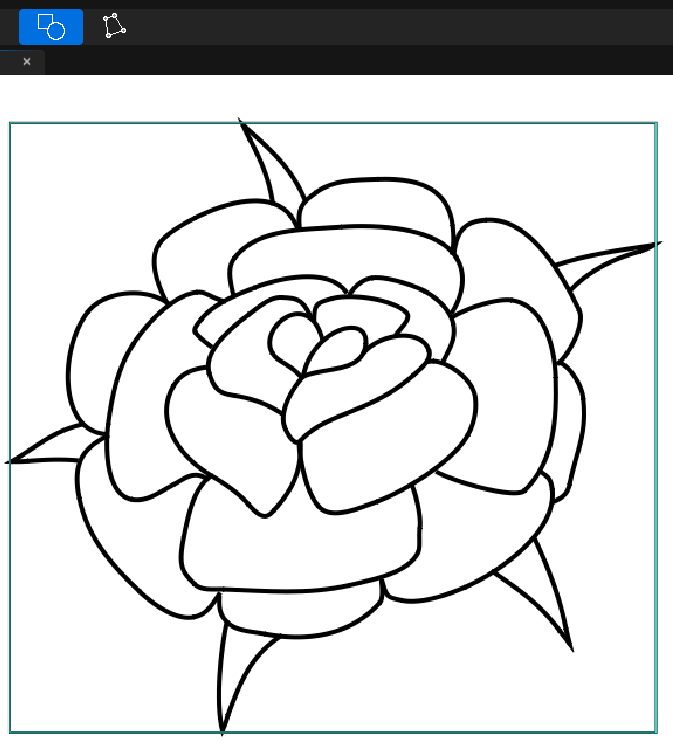

Object Selection Mode:

../../_images/vector-select-object.png

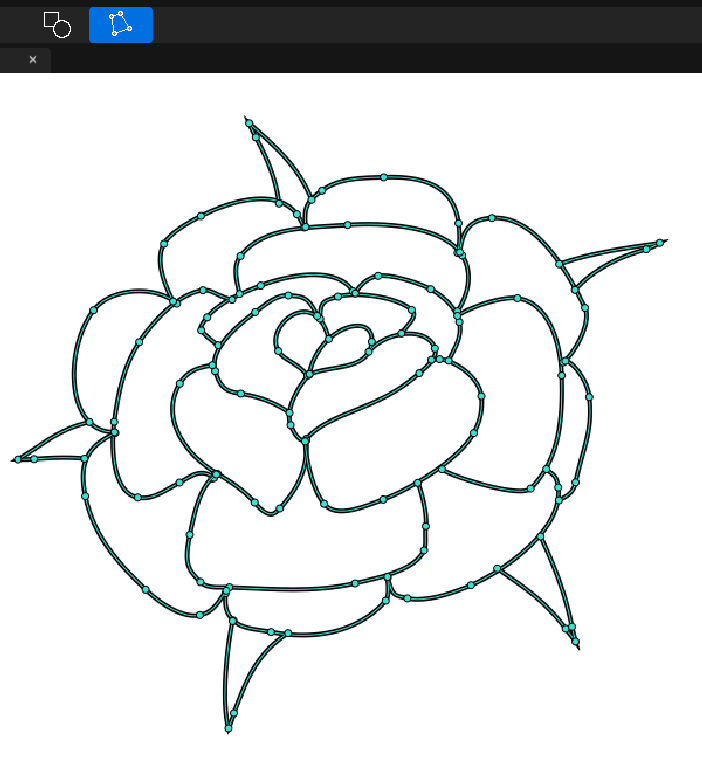

Vertex Selection Mode:

../../_images/vector-select-vertex.png

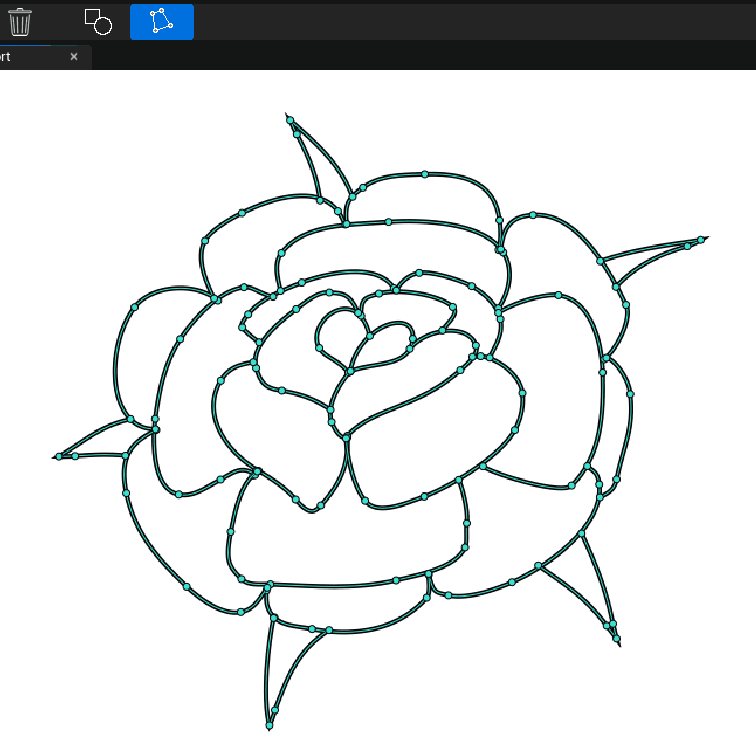

Hold the left click to select several vertices, which will turn them red:

../../_images/vector-select-vertices.gif

Note

Hold Ctrl to add a new selection to the active selection.

Hit Delete to delete a selected group (only works in Selection Mode “Object”).

Contextual Menu

Object

When using the Selection Tool in Object Mode, you can display more options with a right click on the canvas.

../../_images/vector-selection-object-rightclick.png

  • Reset View: Resets the position and zoom of the Scene (which was modified with the Vector Pan / Zoom Tool).

  • Make Paint Group: Turns a specific area into a Paint Group to be filled with the Paint Bucket.

  • Group: Groups paths and shapes to form one object.

  • Ungroup: Breaks the group made previously into separated paths and shapes.

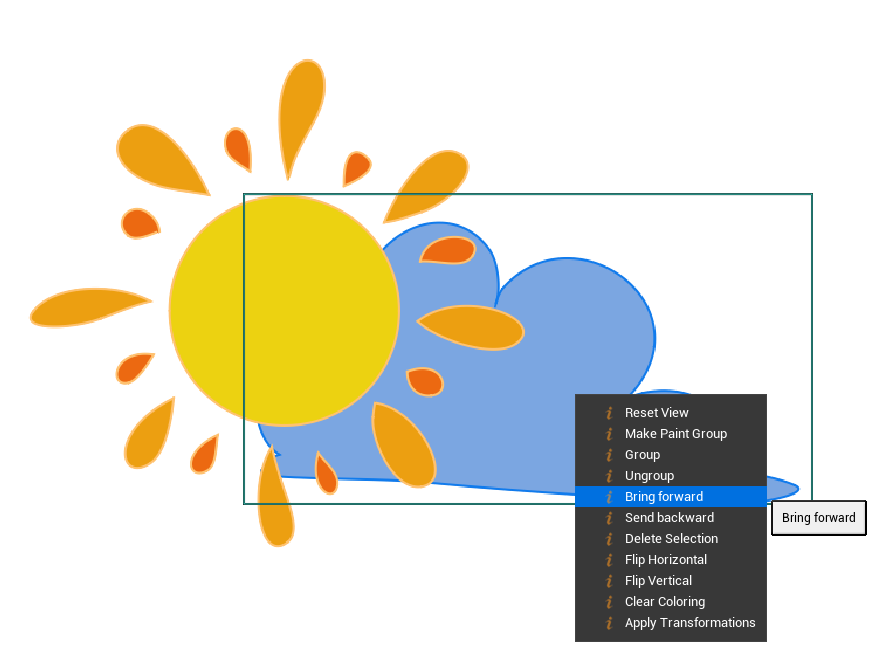

  • Bring Forward: Brings the Selection above other elements from the Scene.

../../_images/vector-selection-object-rightclick-forward.png

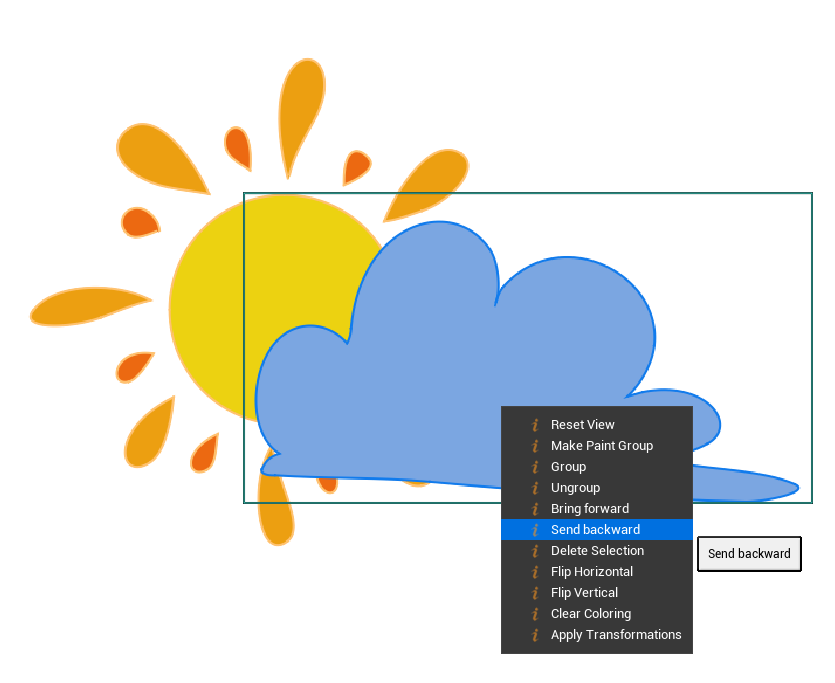

  • Send Backward: Sends the Selection under other elements from the Scene.

../../_images/vector-selection-object-rightclick-backward.png

  • Delete Selection: Deletes the whole selection. You can also hit Delete to delete a selected group.

  • Flip Horizontal | Vertical: Flips the selection on the horizontal or vertical axis.

  • Clear Coloring: Clears the floodfill done with the Paint Bucket.

  • Apply Transformation: Applies transformations done with Transform Tool to a selected group, which resets values like Translation X & Y, Rotation and Scaling X & Y. To have more details about this values, please read the lesson about the panel Vector Selection.

Vertex

When using the Selection Tool in Vertex Mode, you can display more options with a right click on the canvas.

../../_images/vector-selection-vertex-rightclick.png

  • Delete Selection: delete a selection of vertices.

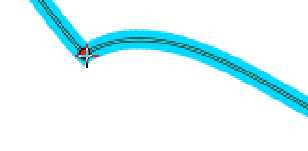

  • Align Point Selection: align the handles of a vertex

../../_images/vector-selection-vertex-align.gif

  • Unalign Point Selection: unalign the handles of a vertex (to be edited with Path Edit Tool)

Transform

Options

../../_images/vector-transform-options.png

  • Picking Radius: To increase or decrease the radius of the circle of influence which allows to select handles.

  • Uniform: To rescale the selection uniformly. You can also toggle this mode by holding Shift.

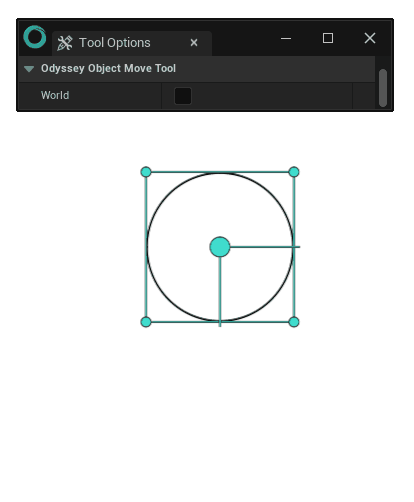

  • World: Enable this mode to transform your selection according to the canvas (World). Disable it to transform your selection according to the selected object (will only work with a single shape or path, not on a group).

../../_images/vector-transform-world.gif

Object or Vertex

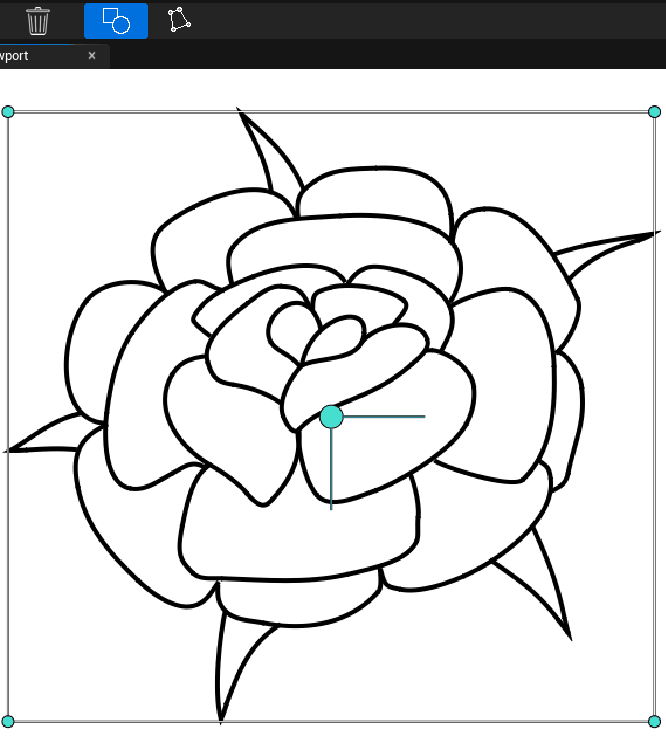

Using Transform in Object mode:

In Object Mode, Transform will affect objects that were selected beforehand. If no object was selected, depending on the context, Transform will either move a single path or shape detected, or the whole Scene if nothing else was detected.

../../_images/vector-transform-object-noselection.gif

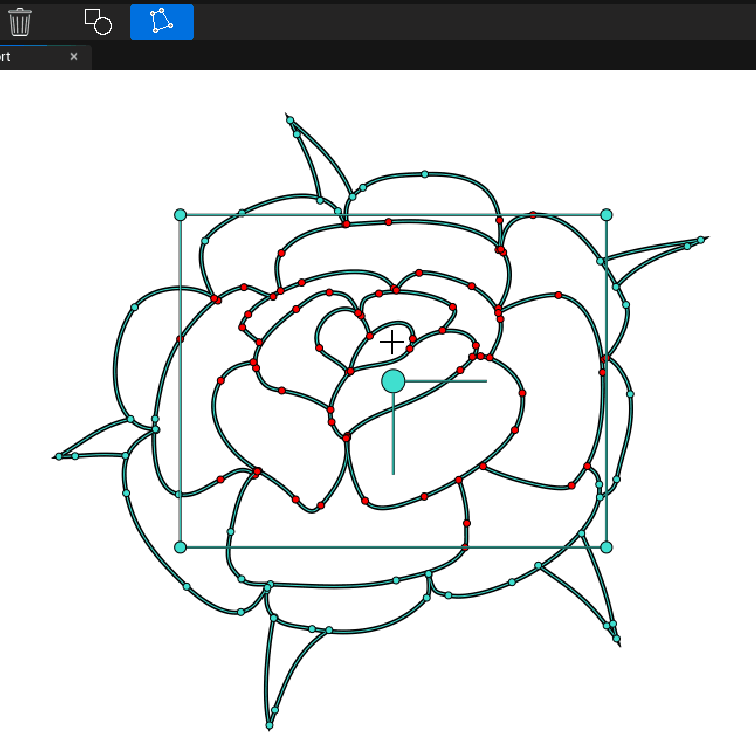

Using Transform with selected vertices:

../../_images/vector-transform-vertices.gif

Using Transform

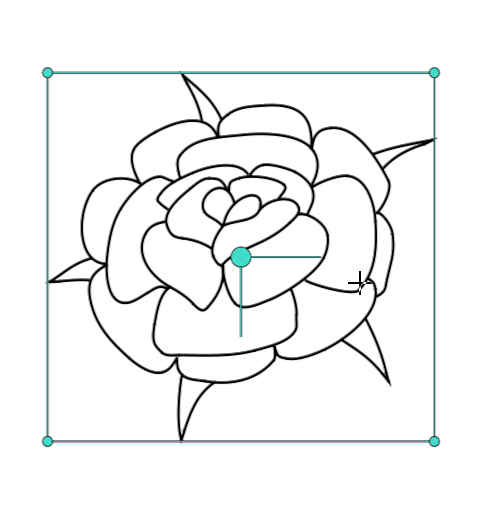

Use the green dots outside the Transform HUD and hold the click to resize the selection. Click in the middle of the selection and hold the click to move it around. Use the big green dot in the middle and hold the click to move the pivot for the rotation. Click outside the selection HUD to rotate the selection.

../../_images/vector-transform-basics.gif

Hand Tool

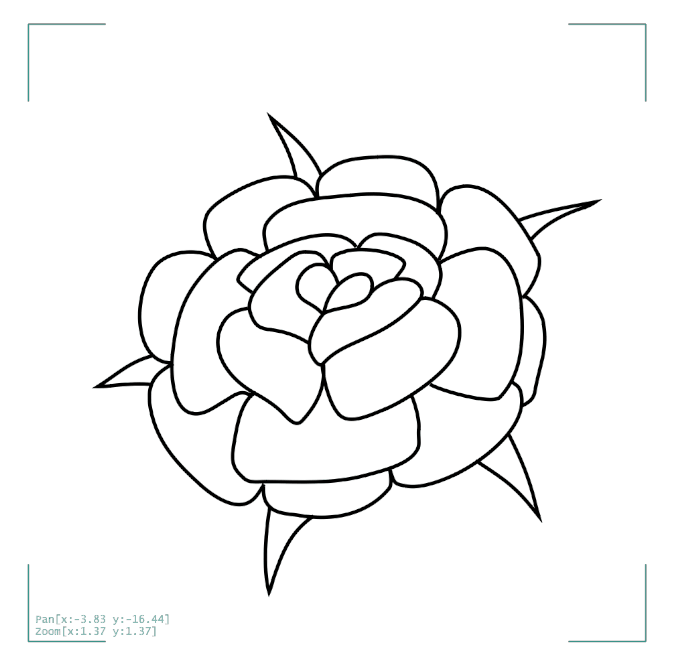

Hold LMB to pan your Scene up, down, left and right.

Hold RMB with a mouse or RMB+LMB with a stylus and move to the right to zoom in or to the left to zoom out your Scene.

../../_images/vector-pan-zoom.gif

Push

../../_images/11_Push_toolOption.png

  • Radius: To change the size of the circle of influence.

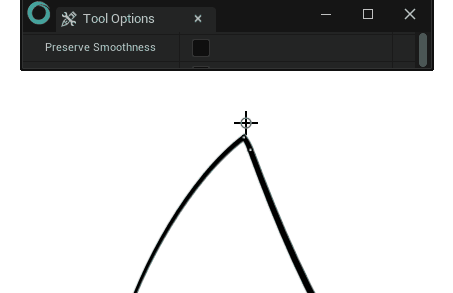

  • Preserve Smoothness: Enable this option to keep a smooth connection between vertices. Disable it for a sharper connection.

../../_images/vector-push-smoothness.gif

  • Restrict to Selection: Enable this option to affect vertices from a selected group only.

Path smooth tool

To be added

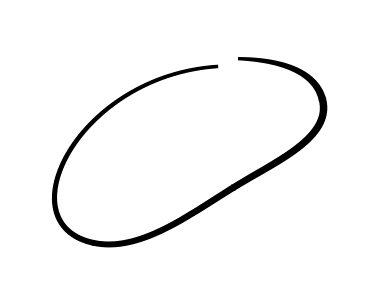

Stitch

../../_images/vector-stitch-options.png

  • Radius: To change the size of the circle of influence.

  • Restrict to Selection: Enable this option to affect vertices from a selected group only.

../../_images/vector-stitch.gif

Path Eraser

Allows you to erase part of a path, and recreate vertices on either side of the erased part.

Note

Hold Shift to delete large strokes and easily clean up your drawings.

../../_images/vector-eraser-shift.gif

Paint Bucket

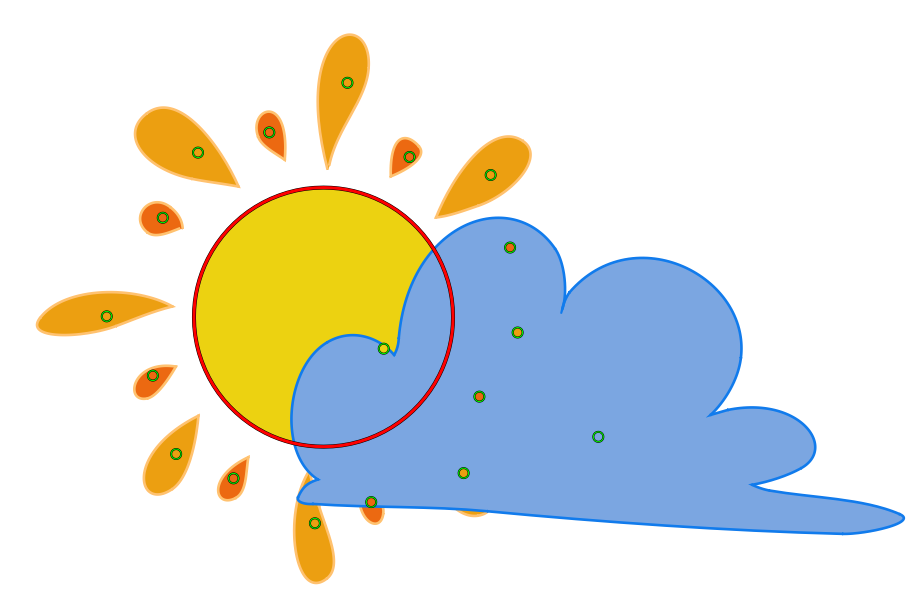

This tool detects areas with closed lines (which are circled in red). Click on these areas to add a dot (which symbolizes the Paint Bucket) and fill in the area. The image below shows both a closed shape with a red circle and the Paint Bucket dots:

../../_images/vector-paintbucket-dots.png

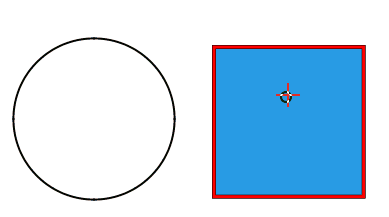

Each dot can be moved with a click on it. If another closed area is detected, it will be filled in.

../../_images/vector-paintbucket-move.gif

If you make any change on the shapes, the Paint Bucket will adapt to the modification.

  • Restrict to Paint Group: Enable this option only if you made a Paint Group beforehand, thanks to the Selection Tool.

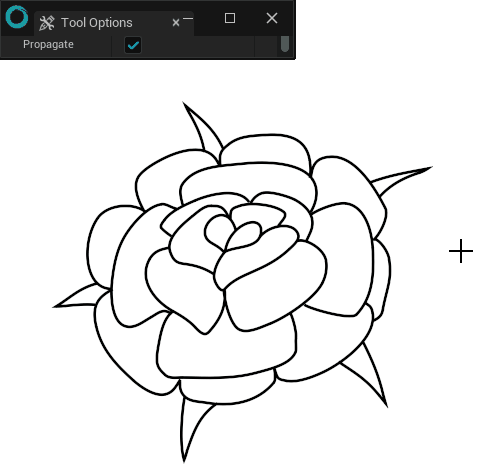

  • Propagate: When enabled, this option will propagate the floodfill beyond the closed area in red detected by the Paint Bucket.

../../_images/vector-paintbucket-propagate.gif

  • Color Mode: to be added later

You can also display more options with a right click on the canvas.

../../_images/vector-paintbucket-rightclick.png

  • Delete Bucket: Deletes the Selected Bucket.

  • Propagate Bucket: Propagates the floodfill beyond the closed area.

  • Unpropagate Bucket: Limits the floodfill to the closed area.

  • Copy Bucket Param: Copies the settings of the Paint Bucket in order to paste this attributes to another existing Paint Bucket.

  • Paster Bucket Param: Paste the copied settings to replace the attributes of an existing Paint Bucket.

  • Bucket Properties: To check and modify the properties of the current Paint Bucket.

Eyedropper

Click on the Eyedropper to pick up a color from the canvas. Then, do not forget to select the Path Drawing Tool, the Paint Bucket or the Primitive Shapes Tool to use the color.

Grid

Grid is a warp tool which is applied on the latest selected group or object.

../../_images/vector-grid-options.png

  • Divisions X | Y: To choose the number of divisions in the grid.

  • Radius: To change the size of the circle of influence when selecting a handle.

  • Apply Transformation: Applies transformations done to selected group, which resets values like Translation X & Y, Rotation and Scaling X & Y. To have more details about this values, please read the lesson about the panel Vector Selection.
